Universal, angled and aesthetic abutments

The NucleOSS Dental Implant System is an in-bone dental implant system with dental implants and related abutments, healing caps and surgical instruments. It is compatible with T6 and T6 Torq Superstructures, T6 and T6 Torq Dental Implants and the T6 Surgical Set. Failure situations that may occur as a result of use with different systems may harm the patient. The product label gives the product code, specification and production date.

The system offers dentists a range of superstructure options for different purposes: cemented, screwed, customised and removable prostheses, CAD-CAM solutions and scan bodies, plus auxiliary prosthetic parts and temporary parts.

• Bases (1.1): abutments are placed on dental implants to support prosthetic reconstructions such as crowns or bridges. The catalogue lists superstructures compatible with the platform diameter and length of the abutments.
• Screws (1.2): the screw fixes the superstructure to the dental implant.
• Healing heads (1.3): healing caps are used in single-stage, transmucosal surgical protocols. They are screwed into the dental implant, protect its internal structure and do not support a prosthetic superstructure.
• General information (1.4): most superstructures are suitable for use throughout the patient’s lifetime. Temporary abutments can be shortened to the implant screw level depending on the patient’s oral anatomy.

Each superstructure package has a lot number on it and contains three lot number labels. For retrospective traceability, it is strongly recommended that these labels are kept in the patient’s file together with the panoramic X-ray.

Intended use: cemented abutments are intended for use with NucleOSS Dental Implants in the maxillary and/or mandibular arches to provide support for crowns, bridges or overdentures for edentulous or partially edentulous patients.

Indications: NucleOSS T6 and T6 Torq superstructures are prefabricated prosthetic components directly connected to endoosseous dental implants and are intended to be used as an aid in prosthetic rehabilitation.

Target patient population: people with adult jaw structure where none of the contraindications for dental implantation apply. Target users: dentists licensed in dentistry.

Expected clinical benefit: patients can expect to have one or more missing teeth replaced and/or crowns restored to restore chewing function.

Cemented abutments of the NucleOSS Dental Implant System are manufactured from Grade-23 titanium alloy according to ISO 5832-3 and are offered for sale as non-sterile. They must be sterilised before use by the end user.

The cleaning section also names PEEK and chrome-cobalt materials, in the context of choosing a disinfectant that does not damage them.

• High blood pressure, cardiovascular disease, diabetes, bone metabolism disorders, uncontrolled bleeding disorders, inadequate wound healing capacity, inadequate oral hygiene, serious internal medical problems, incomplete development of the upper and lower jaw, poor general health, uncooperative and unmotivated patients, drug, alcohol or smoking addiction, psychoses, functional disorders resistant to long-term treatment, xerostomia (dry mouth), granulocytopenia (lack of white blood cells), Ehlers Danlos syndrome, radiation therapy, osteoradionecrosis, weakened immune system, renal failure, organ transplantation, fibrous dysplasia, crohn’s disease, steroid, corticosteroid or anticonvulsant use, prophylactic antibiotics, creatinine, serum calcium, titanium allergy, uncontrolled endocrine disorders, anticoagulation drugs, haemorrhagic diathesis, bruxism, parafunctional habits, unfavourable anatomical bone conditions, uncontrolled periodontitis, temporo-mandibular joint disorders, treatable pathological diseases of the mandible or changes in the oral mucosa, pregnancy, breastfeeding, osteoporotic fracture, respiratory disease, thyroid or parathyroid diseases.
• Patients with active osteolytic, inflammation, diagnosed malignancy, nodular growths, tenderness, unexplained swelling of the head or neck, infectious conditions at the implant site.

• Unrealistic patient expectations.
• Unattainable prosthetic reconstructions.
• Inadequate training of the practitioner.

Observance of precautions and warnings ensures safe handling and application.

• Use of the NucleOSS brand and sale of NucleOSS Dental Abutment System products are restricted to NucleOSS and its business partners.
• All models in the NucleOSS Dental Abutment system (T6, T6 TORQ) should be applied according to NucleOSS Surgical and Prosthetic protocols.
• It should be kept out of the reach of children.
• The abutment suitable for the patient’s oral structure should be used with the appropriate dental implant.
• The patient should be informed before and after the surgical operation.
• Abutments with damaged packaging should not be used.
• Make sure that the patient’s health condition is suitable for the operation.
• Abutments are sold as non-sterile. Before use, they must be sterilised by the user as specified in the instructions for use.
• Previously used abutments cannot be reused.

If the following warnings and precautions are not observed, complications may occur, such as the part entering the windpipe or swallowing the part.

During placement, the dentist and auxiliary personnel must use appropriate personal protective equipment (PPE) to prevent the risk of interpersonal infection. The procedure should not be performed without gloves and masks.

For dental technicians:

• When polishing the abutments, ensure that the part entering the implant is protected, or perform this process with the abutment attached to the implant analogue.
• Place the abutment on the model, checking the correct orientation and making sure that it is fully seated.
• Fix the abutment with the abutment screw provided and tighten it with the torque values given in Table 1.
• After this stage, create the prosthesis suitable for the treatment and remove it from the model with the help of the correct hex key.

For dentists:

• The clinician should take the abutments from the laboratory and remove the temporary restorations, closure screws or healing caps from the patient’s mouth.
• After cleaning, disinfecting and sterilising the prosthetic parts from the laboratory, the clinician should apply them to the patient’s mouth by tightening them with a tightening piece according to the specified torques.
• If the superstructures are tightened more or less than the specified torque values, it may cause the abutments and/or implants to fail.
• The appropriate torquing values for the use of superstructures are in Table 1.

Before surgery:

• Clinical and radiological examination of the patient should be performed preoperatively to determine whether the patient is suitable for treatment and to determine his/her psychological and physical condition.
• Special attention should be paid to patients with localised or systemic factors that may interfere with the bone or soft tissue healing process or the osseointegration process (for example smoking, poor oral hygiene, uncontrolled diabetes, facial radiotherapy, infections in the lateral tooth or bone, bisphosphonate therapy).

• The device has not been evaluated in paediatric/adolescent patients and is not recommended for use in children.

Surgery:

• All components, devices and instruments used during the procedure must be kept in good condition, and care must be taken to ensure that the instrumentation does not damage implants, superstructures or other components.
• Following implant placement, the surgeon’s assessment of bone quality and primary stability determines when the implants can be loaded. The choice of superstructure and the time of application should be evaluated.
• NucleOSS superstructures are medical devices that do not require installation. It is strongly recommended that specialists using them for the first time receive training from NucleOSS. For more information, contact NucleOSS dealers or representatives, or NucleOSS at info@nucleoss.com.

After surgery:

• To ensure a long-term treatment outcome, regular comprehensive patient follow-up after implant treatment is recommended, with the necessary information on proper oral hygiene.

The clinical outcome of dental treatment can be influenced by many variables. Possible residual risks and side effects may occur during or after the operation:

• Pain, swelling, phonetic difficulties, gingivitis.
• Dental implants, permanent paresthesia, dysesthesia, marginal bone loss, localised or systemic infections, oroantral or oronasal fistula, disruption of adjacent teeth, irreversible damage to adjacent teeth, implant fractures in the jaw, bone or prosthesis, nerve damage, exfoliation, chronic pain associated with hyperplasia, implant failure, fractures in the neck area where the implant and abutment meet, screw loosening or fracture, abutment fracture, abutment compression into the implant.

In the placement steps, the M.1.6 connection screw is torqued to a maximum of 30 Ncm with a NucleOSS ratchet (section 15.4).

Tightening more or less than the specified torque may cause the abutments and/or implants to fail.

NucleOSS T6 and T6 Torq superstructures are not sterile when delivered. The product must be cleaned, disinfected and sterilised before the superstructures are placed in the patient’s mouth. Details of the sterilisation process are given below.

1. Wash the superstructures inside and outside with a soft bristle brush under running water.
2. Disinfect the superstructures with a suitable disinfectant that will not damage the titanium alloy (Gr 23), PEEK and chrome-cobalt material.

All superstructures of the NucleOSS Dental Implant System are offered for sale as non-sterile and must be sterilised before use by the end user. Before sterilisation, place the superstructures separately in sterilisation bags.

• After sterilisation, the products must be used immediately.
• A minimum valid sterilisation time and temperature is required to achieve a sterility assurance level of 10⁻⁶.
• The sterilisation parameters and methods shown are validated by NucleOSS Dental Implants.
• According to EN ISO 17665, the ultimate responsibility for validation of sterilisation techniques and equipment lies with the processor. All autoclaves/sterilisers must be maintained and validated in accordance with EN ISO 17665.
• For implant sterilisation information, refer to the implant user manual.

Non-clinical testing has shown that the NucleOSS Dental Implant System is “Conditional MR”. The patient can be safely scanned with this device immediately after placement under the following conditions:

• 1.5-Tesla and 3-Tesla magnetic static field.
• 4,000-gauss/cm (40 T/m) dimensional gradient magnetic field.

• Maximum reported MR system average specific absorption rate (SAR) for the body: 2-W/kg.

Improper storage may jeopardise the basic material and design characteristics and may cause the device to malfunction.

• Disposal of the device must comply with local regulations and environmental requirements, taking into account different levels of contamination.
• Hazardous waste from contaminated devices or sharps must be disposed of in appropriate containers that meet specific technical requirements.
• The patient should be informed about contraindications, warnings, precautions, side effects and complications of NucleOSS dental implant systems.
• There is no residue, leakage or harmful residue on the surface of the device that could harm the user or the patient.
• The patient should be informed about the MRI compatibility of the NucleOSS products used.
• The surgical site should be kept clean before and after the operation, and the patient should be well informed about its cleanliness.
• The area where the implant and superstructure are placed should not be exposed to load with chewing movement in the early period.
• For detailed information, refer to the Patient Information Booklet (https://www.nucleoss.com/hastaya-ozel/).

NucleOSS offers abutment options in different prosthetic platform diameters and gingival heights for cemented solutions, which reduces the need for abutment correction with the milling cutter.

1. The healing cap is carefully removed with a manual hex key.
2. If there are blood and tissue particles in the implant, they are first vacuum cleaned.

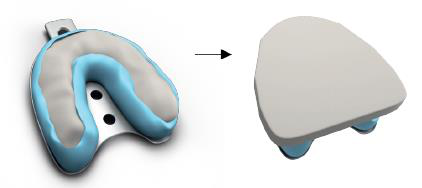

3. Depending on user preference and the clinical situation, the impression parts are carefully inserted into the implant according to the impression technique to be applied (open tray or closed tray).
4. To fix the impression part to the implant, the connection screw is fixed to the implant with a manual hex key.
5. Before the tray is placed in the patient’s mouth, dense impression material, an elastomeric material, is placed in the impression tray.
6. When the material is cured and hardened, the mould is removed from the patient’s mouth with the impression tray.

4. The abutment is carefully inserted into the analogue in the plaster model with the connection screw and mounted together.

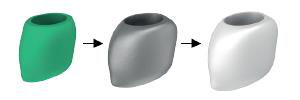

5. The burrs on the prepared plaster model are cleaned and the model is sent to prosthesis making.

1. The healing cap or temporary abutment is removed from the patient’s mouth.
2. If there is blood, tissue or pus inside the body, it is cleaned with vacuum.

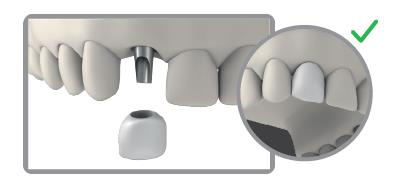

3. Before the created single tooth prosthesis is placed in the patient’s mouth, the sterilised standard flat abutment is carefully placed on the implant in the patient’s mouth.
4. To fix the abutment to the implant, the M.1.6 connection screw is tightened by hand (manually) with a hex key.
5. The connection screw should be torqued to a maximum of 30 Ncm with a NucleOSS ratchet.

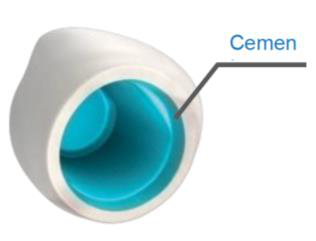

This procedure should be considered a minimum guideline, with details in the NucleOSS Surgical Manual (https://www.nucleoss.com/kaynaklar/download/).

With the launch of the European Medical Devices Database, a summary of safety and clinical performance for NucleOSS T6 and T6 Torq bodies will be available at https://ec.europa.eu/tools/eudamed.

In countries with Regulation 2017/745/EU on Medical Devices: if a serious adverse event occurs during or as a result of the use of this device, notify the manufacturer and your national competent authority. Manufacturer contact for reporting: NucleOSS, e-mail info@nucleoss.com. See the full instructions (PDF) for the web address.

Basic UDI-DI numbers for the four abutment families:

These symbols are used on NucleOSS products. See the full instructions (PDF) for the symbol graphics.

• Product catalogue number
• Authorised representative
• Product lot number
• Read the operating instructions
• 2nd time not used
• Expiry date
• Do not use if the packaging is damaged
• Manufacturer
• Not sterile
• Prescription use only
• Medical device
• Distributor
• Producer country
• Warnings
• Unique device identifier
• Model number
• MRI safety information
• Importer

• CE marking: the manufacturer’s declaration that the product meets the requirements of the applicable EC legislation; where applicable, the identification number of the Notified Body follows the symbol
